-86℃ Horizontal ultra low Freezer – 128L

Short Description:

Application:
-86°C ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.

INQUIRY NOW

Features

Specification

Detail

Product Tags

Temperature Control

Temperature range: -40°C~-86°C, with an increment of 0.1°C

Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high refrigeration effect.

Ergonomic Design

Safety door lock
Ultra-simple condenser filter design, convenient for maintenance and washing.

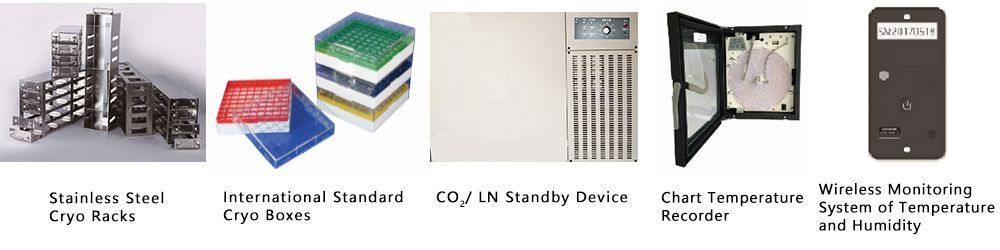

Optional Accessories

singleimg

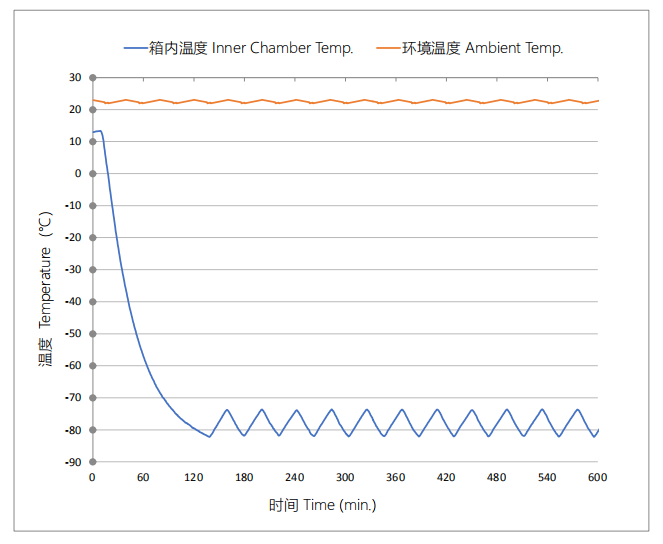

Performance Curve

Manual Brochure

Previous: Excellent quality Drug Cold Storage 2-8 Degree Laboratory Refrigerator for Medicine Vaccine Refrigerator

Next: High Quality Automatic Fluidized Bed Liquid Nitrogen Blast IQF Tunnel Freezer (Price)

Model		DW-86W128
Technical Data	Cabinet Type	Chest
	Climate Class	N
	Cooling Type	Direct cooling
	Defrost Mode	Manual
	Refrigerant	Hydrocarbon, Mixing
Performance	Cooling performance(°C)	-80
Performance	Temperature Range(°C)	-40～-86
Power (W)		480
Energy consumption (KW.H/24H)		4.5
Material	Exterior Material	Galvanized steel powder coating
	Interior Material	Stainess steel
	Insulation Material	PUF+VIP
Dimensions	Capacity(L)	128L
	Interior Dimensions(WDH)	630×440×470 (mm)
	Exterior Dimensions(WDH)	850×660×1020 (mm)
	Package Dimensions(WDH)	930×755×1150 (mm)
	Container load (20′/40′)	36/72
	Thickness of Cabinet Foamed Layer	90mm
	Thickness of Door	90mm
Capacity for 2 inch boxes		96
Power Supply(V/Hz)		220V/50Hz

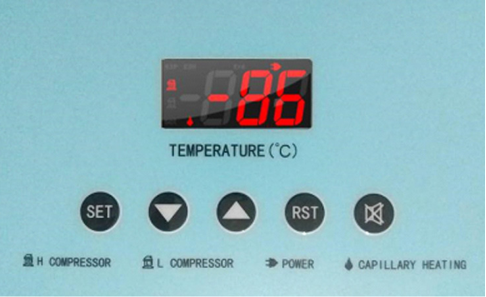

Controller Functions	Display	Large digital display & adjusting keys
	High/Low Temperature	Y
	Hot Condenser	Y
	Power Failure	Y
	Sensor Error	Y
	Low Battery	Y
	High Ambient Temp	Y
	Alarm mode	Sound and light alarm, remote alarm terminal
Accessories	Caster	Y
	Test Hole	Y
	Chart Temperature Recorder	Optional
	Door locking device	Y
	Handle	Y
	Pressure balance hole	Y
	Racks & Boxes	Optional

	Safety Control System Malfunction alarms: high/low temperature, sensor/power failure, low voltage of backup battery alarm, door opening alarm, and over temperature alarm system.

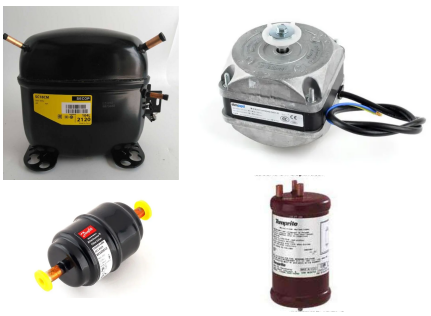

	Well-known brand parts of cooling system Use well-known SECOP compressor with good quality, configuring high-performance Germany ebmpapst fan, filter and oil separator to ensure cooling system performance.
	Hydrocarbon Refrigerant (HC) HC refrigerants, following the trend in energy conservation, improve refrigerating efficiency, reduce the running cost and protect the environment.
