-40℃ Vertical laboratory Freezer – 390L

Short Description:

Application:
-40°C Deep Freezer is designed for long term storage of various medical and biological products, such as blood plasma, vaccines, testing reagents and laboratory materials, even some electronic products for test. It can be installed in research institutions and clinical sites in life science, blood banks, hospitals, electronic testing and medical laboratories.

INQUIRY NOW

Features

Specification

Product Tags

There are a variety of ultra-low temperature storage solutions for individual laboratory users to choose from to meet the growing demand for sample storage.

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view;
The inner temperature can be adjusted from -10°C to -40°C.

Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Refrigeration System

Highly efficient compressor and high reliable fan;
90mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the freezer.

Ergonomic Design

Double inner doors to reduce the loss of cold air after opening the door;
Adjustable shelf design

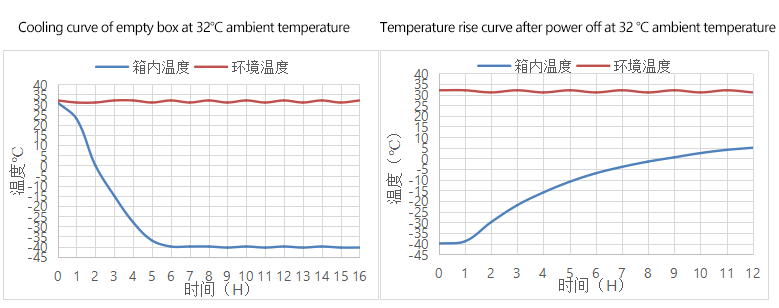

Performance Curve

Manual Brochure

Previous: -40℃ Vertical laboratory Freezer – 280L

Next: -40℃ Vertical laboratory Freezer – 590L

Model		DW-40L390
Technical Data	Cabinet Type	Vertical
	Climate Class	N
	Cooling Type	Direct cooling
	Defrost Mode	Manual
	Refrigerant	R290
Performance	Cooling performance(°C)	-40
Performance	Temperature Range(°C)	-10～-40
Material	Exterior Material	Galvanized steel powder coating
	Interior Material	Galvanized steel powder coating
	Insulation Material	PUF
Dimensions	Capacity(L)	360L
	Interior Dimensions(WDH)	460x520x1410mm
	Exterior Dimensions(WDH)	600x660x1920mm
	Packing Dimensions(WDH)	660x720x2050mm
	Thickness of Cabinet Foamed Layer	70mm
	Thickness of Door	70mm
Capacity for 2 inch boxes		180
Inner door/Drawer		4/ -
Power Supply(V/Hz)		220V/50Hz
Controller Functions	Display	Large digital display & adjusting keys
	High/Low Temperature	Y
	Hot Condenser	Y
	Power Failure	Y
	Sensor Error	Y
	Low Battery	Y
	High Ambient Temp	Y
	Alarm mode	Sound and light alarm, remote alarm terminal
Accessories	Caster	Y
	Test Hole	Y
	Shelves（stainless steel）	-
	Chart Temperature Recorder	Optional
	Door locking device	Y
	Handle	Y
	Pressure balance hole	Y
	Racks & Boxes	Optional
