+2~+8℃ Medical Refrigerator – 140L – Solid Door
Temperature Control
- Microprocessor control, Large LED display inner temperature clearly, and with easy view
- Temperature range: 2℃~8℃ with an increment of 0.1
Safety Control
- Malfunction alarms: high temperature alarm, low temperature alarm, Power failure alarm, Door jammed, low voltage of backup battery. Over temperature alarm system, set the alarm temperature as requirements;
Refrigeration System
- Highly efficient and well-known brand compressor and fan, to guarantee refrigeration performance.
- Forced-air circulation for large airflow with special air ducts to guarantee inner temperature consistency.
Ergonomic Design
- Safety door lock, preventing unauthorized access;
- No condensation glass door;
| Model | KYC140F | |
| Technical Data | Cabinet Type | Under-counter |
| Climate Class | ST | |
| Cooling Type | Forced air cooling | |
| Defrost Mode | Auto | |
| Refrigerant | HC, R600a | |
| Performance | Cooling performance(℃) | 4 |
| Temperature Range(℃) | 2～8 | |
| Control | Controller | Microprocessor |
| Display | LED | |
| Alarm | Audible, Remote | |
| Material | Interior | Galvanized steel powder coating（white） |
| Exterior | Galvanized steel powder coating（white） | |
| Electrical Data | Power Supply(V/Hz) | 220/50 |
| Power(W) | 85 | |
| Dimensions | Capacity(L) | 135 |
| Net/Gross Weight(approx) | 55/65 (kg) | |
| Interior Dimensions(W*D*H) | 500×510×570 (mm) | |
| Exterior Dimensions(W*D*H) | 600×650×805 (mm) | |
| Packing Dimensions(W*D*H) | 660×700×910 (mm) | |
| Container load (20′/40′/40′H) | 48/102/153 | |
| Functions | High/Low Temperature | Y |
| Remote Alarm | Y | |
| Power Failure | Y | |
| Sensor Failure | Y | |
| Low Battery | Y | |
| Door Ajar | Y | |
| Lockage | Y | |
| Inner LED light | Y | |
| Accessories | Foot | Y |
| Caster | N | |
| Test Hole | Y | |
| Shelves/Inner Doors | 3/- | |
| Glass Door | optional | |
| USB Interface | Y | |
| Temperature Recorder | optional | |
 |
Forced-air Circulation Forced-air circulation for large airflow with special air ducts to guarantee inner temperature consistency |
 |

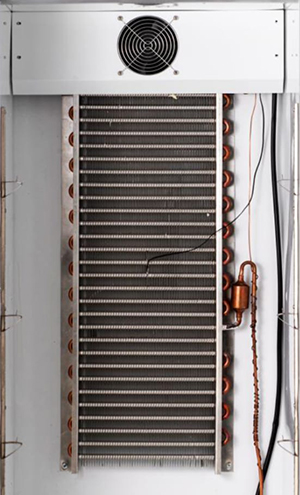

Large Area Fin-Style of Evaporator Large area copper pipe aluminum fin evaporator makes the inner temperature more uniformly and stably,reducing the occurrence of icing up, guaranteeing a longer service life. |
| Automatic Defrosting Auto Defrosting function guarantee a good performance in high ambient temperature and humidity area. |
|
 |

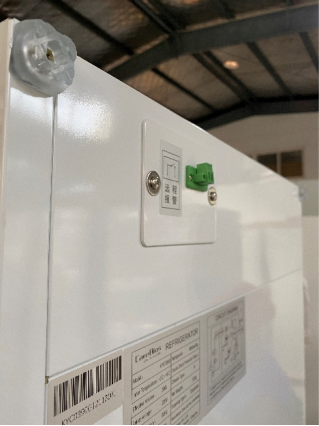

Rear Stopper Against back wall |
