-25℃/+4℃ Combined Refrigerator and Freezer
Temperature Control
- The inner temperature range is 2℃~8℃ and -10℃~ -25℃, with an increment of 0.1
Safety Control
- Malfunction alarms: high temperature alarm, low temperature alarm, Power failure alarm, Door jammed, low voltage of backup battery. Over temperature alarm system, set the alarm temperature as requirements;
Refrigeration System
- Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;
- CFC-Free/HCFC refrigerant.
Ergonomic Design
- Safety door lock, preventing unauthorized access;
- Adjustable shelves design;

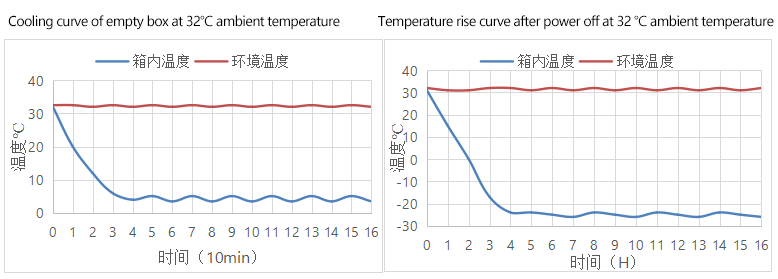

Performance Curve
| Model | KYCD-300 | |
| Technical Data | Cabinet Type | Vertical |
| Climate Class | ST | |
| Cooling Type | REF: Forced air cooling; FREEZER: Manual | |
| Defrost Mode | Auto | |
| Refrigerant | HC,R600a | |
| Performance | Cooling performance(℃) | 4/-25 |
| Temperature Range(℃) | REF: 2～8；FREEZER:-10～-25 | |
| Material | Interior | Galvanized steel powder coating（white） |
| Exterior | Galvanized steel powder coating（white) | |
| Control | Controller | Microprocessor |
| Display | LCD | |
| Alarm | Audible | |
| Dimensions | Capacity(L) | REF:200; FREEZER:100L |
| Net/Gross Weight(approx) | 88.5/100 (kg) | |
| Interior Dimensions(W*D*H) | REF: 516x498x730mm; FREEZER: 458x469x356mm | |
| Exterior Dimensions(W*D*H) | 600×609×1750mm | |
| Packing Dimensions(W*D*H) | 660x660x1840mm | |
| Electrical Data | Power Supply(V/Hz) | 220V/50Hz |
| Power(W) | 340 | |
| Functions | High/Low Temperature | Yes |
| Sensor Failure | Yes | |
| Door Ajar | Yes | |
| Lockage | Yes | |
| Inner LED light | Yes | |
| Accessories | Caster | Yes |
| Test Hole | optional | |
| Shelves | REF:2; FREEZER:1 | |
| Foaming Door | optional | |
| Temperature Recorder | optional | |
