-86℃ Vertical ultra low freezer -480L

Short Description:

-86°C ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.




Product Tags

Temperature Control

  • Microprocessor control, Large LED display inner temperature clearly
  • The inner temperature can be adjustable at the range of -40°C~-86°C

Safety Control

  • Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery.
  • Over temperature alarm system, you can set the alarm temperature as needed.

Refrigeration System

  • Dual cascades refrigeration technology, two SECOP compressors to reach a high refrigeration effect.

Ergonomic Design

  • Safety door lock, preventing unauthorized access
  • Wide voltage design from 192V to 242V;

Optional Accessories


Performance Curve

Performance Curve

  • Previous:
  • Next:

  • Model DW-86L480
    Technical Data Cabinet Type Vertical
    Climate Class N
    Cooling Type Direct cooling
    Defrost Mode Manual
    Refrigerant Hydrocarbon, Mixing
    Performance Cooling performance(°C) -80
    Temperature Range(°C)  -40~-86
    Material Exterior Material Galvanized steel powder coating
    Interior  Material Galvanized steel powder coating
    Insulation Material PUF+VIP
    Dimensions Capacity(L) 480L
    Interior Dimensions(W*D*H) 600x600x1310mm
    Exterior Dimensions(W*D*H) 780x822X1920mm
    Packing Dimensions(W*D*H) 910×900×2050 (mm)
    Thickness of Cabinet Foamed Layer 90mm
    Thickness of Door 90mm
    Capacity for 2 inch boxes 320
    Inner door 2
    Power Supply(V/Hz) 220V/50Hz
    Power (W) 750
    Energy Consumption (KW.H/24H) 9.8
    Controller Functions Display Large digital display & adjusting keys
    High/Low Temperature Y
    Hot Condenser Y
    Power Failure Y
    Sensor Error Y
    Low Battery Y
    High Ambient Temp Y
    Alarm mode Sound and light alarm, remote alarm terminal
    Accessories Caster Y
    Test Hole Y
    Shelves(stainless steel) 3
    Chart Temperature Recorder Optional
    Door locking device Y
    Handle Y
    Pressure balance hole Y
    Racks & Boxes Optional

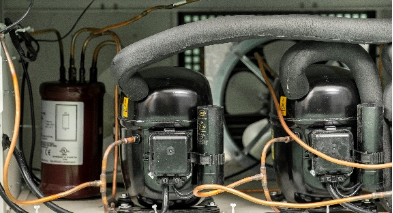

     sdv Dual-cascade Cooling System
    wo SECOP compressors make sure the low temperature consistency and stability.
     sb Vacuum Insulation Panels
    Improve the insulation effect effectively and reduce the equipment area.

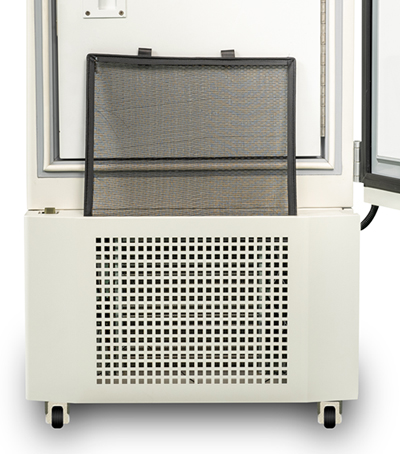

    rth Easy clean filter
    Easy clean filter to save your cleaning time.
